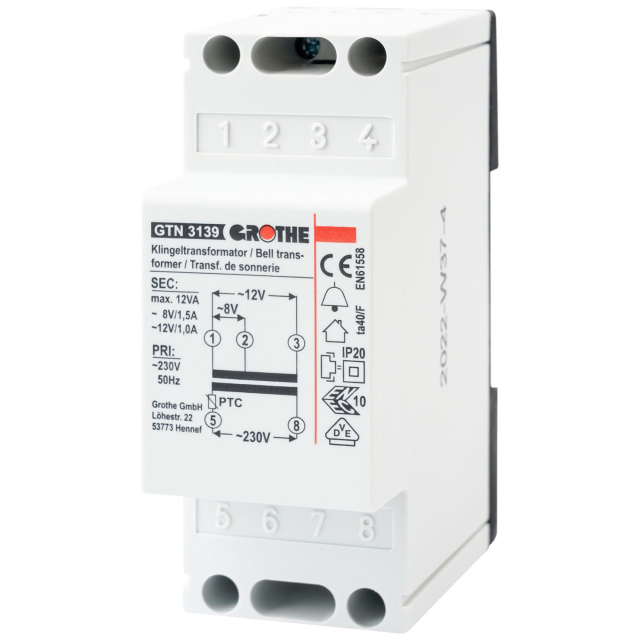

Doorbell transformer GTN 3139

GTN 3139 – Doorbell Transformer for Doorbells & Chimes | Reliable & Short-Circuit Proof with PTC Protection Circuit

The GTN 3139 Doorbell Transformer is specifically designed for residential applications – ideal for doorbells, chimes, door openers, and gongs that are only operated for short periods. Thanks to the integrated PTC (Positive Temperature Coefficient) protection circuit, the transformer is short-circuit and overload proof. If a fault occurs, the device switches off automatically and can be operated again after a short cooling period (at least 1 minute).

Technical Data:

Device Type: Doorbell Transformer

Type: GTN 3139

Primary Voltage: 230 V AC (50 Hz)

Secondary Voltage: 8 V / 12 V AC

Secondary Current: 1.5 A / 1.0 A

Operating Mode: Short-Term Operation

Duty Cycle: Max. 20 seconds

Short-Circuit Resistance: Yes, through integrated PTC

Overload / Short-Circuit Protection: Automatic Shutdown, Reset after min. 1 Minute Power Disconnection

Design: DIN Rail Device, Width: 2 TE

Dimensions (H x W x D): 90 x 54 x 65 mm

Version: Protection class IP20 when using the optional surface-mount kit

Standards: Complies with EN61558, tested and certified

Notes:

The output voltage may be increased at low load or no load.

To restart after a short circuit: Interrupt the primary voltage for at least 1 minute. (Exception: Model GT 50810)

Accessories (optional):

Surface-Mount Kit (Part No. 14936):
Contains two cover caps to achieve protection class IP20 as well as mounting rails and material for surface mounting.

Special Features:

Robust design for typical residential applications

Short-circuit and overload proof thanks to intelligent PTC technology

Compact dimensions for easy installation in the distribution box

Environmentally friendly and tested according to current safety standards

The GTN 3139 is the reliable choice for the safe power supply of doorbell and door systems in private residences.
