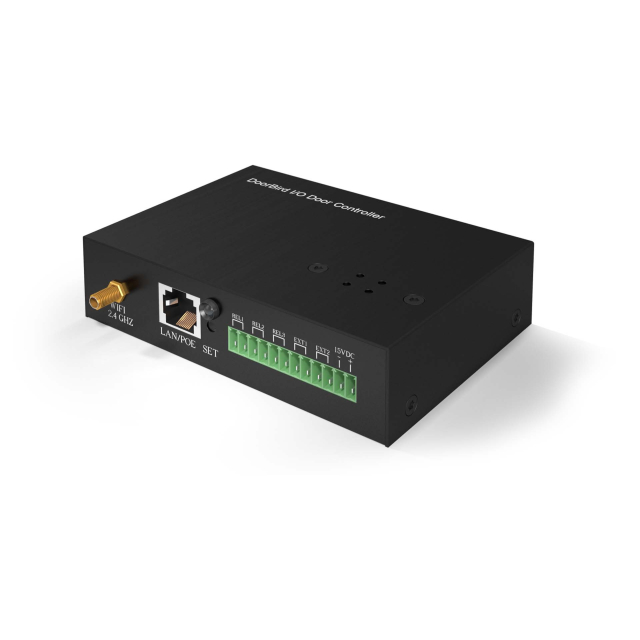

The DoorBird I/O Door Controller A1081

The DoorBird I/O Door Controller A1081 allows you to securely control up to three doors or gates over the network. In most cases, due to structural reasons, electric door openers are connected directly to the door station via two wires. Unauthorized removal of the door station and intentional short-circuiting of the wires can activate the electric door opener, granting unauthorized individuals access to the property or building. The DoorBird I/O Door Controller demonstrably provides a remedy here, as it is installed in a protected interior area, such as in a control cabinet in the basement, and connected to the DoorBird IP Video Door Station via the network. The connection to the network can be done via network cable (PoE) or via Wi-Fi. All signals between the door station and the I/O Door Controller are transmitted securely and encrypted according to banking standards. Up to three electric door openers can be connected to the I/O Door Controller via wiring that is not accessible from the outside. Manipulation, e.g., by short circuit or an external voltage source, is therefore excluded. An I/O Door Controller is often referred to as a "remote security relay" in the door intercom system field. However, in addition to the tamper-proof remote control of doors and gates, the DoorBird I/O Door Controller can do much more: It displays the switching status of the relay (e.g., open or closed), and up to two external sensors such as motion detectors, vibration sensors, or contact switches can be connected and evaluated, including worldwide alarm notification via push notification on smartphones and tablets. Any number of DoorBird I/O Door Controllers can be connected to a DoorBird IP Video Door Station in a network. All doors and gates activated in the I/O Door Controller are available in the DoorBird App with a click, so that residents worldwide can conveniently open doors and gates via smartphone or via event configuration (e.g., RFID or keypad code).

The Advantages

Tamper-proof control of up to three doors or gates
Encryption according to banking standards
Monitoring of two external sensors
Three freely configurable (permanently open, permanently closed, toggle) bistable switching relays
The switching relays retain their state even in the event of power loss
Wi-Fi, Ethernet, PoE
Alarm notification via push notification on smartphones and tablets
Suitable for wall, ceiling, and control cabinet mounting

Technical Data

Power supply 15 V DC or Power over Ethernet (PoE 802.3af Mode-A)
Operating temperature -25 to 55°C / -13 to 131°F Relative humidity 10 to 85 % (non-condensing)
Connections
SMA, RJ45 (10/100 Base-T) for LAN/PoE, 12-Pin screw terminal for
15 V DC input (+, -)
Bi-stable self-holding switching relay #1 max. 24 V DC / AC, 1 Ampere
Bi-stable self-holding switching relay #2 max. 24 V DC / AC, 1 Ampere
Bi-stable self-holding switching relay #3 max. 24 V DC / AC, 1 Ampere
External input 1 (potential-free)
External input 2 (potential-free)
Wi-Fi 2.4 GHz, 802.11 b/g/n, external antenna
PoE IEEE 802.3 af/at (Mode-A)
System requirements
Mobile device: Latest iOS on iPhone/iPad, latest Android on smartphone/tablet
Internet: High-speed landline broadband internet connection, DSL, cable or fiber, no Socks or proxy server
Network: 802.11 b/g/n 2.4 GHz or Ethernet network, with DHCP
Scope of delivery 1 x I/O Door Controller, 1 x network cable, 1 x power adapter (110 - 240 V AC to 15 V DC) with 4 country adapters, 1 x DIN rail adapter, 1 x drilling template, 1 x small parts, 1 x installation manual
Approvals CE, FCC, UL, RoHS, IP50
Weatherproof No
Dimension 122 x 86 x 32 mm (L x W x H)

Compatible with all DoorBird IP Video Door Stations.

Important Information

Camera or Intercom Preparation

The intercom systems must be connected by a qualified electrician. Contact a trusted electrician for planning, installation, and setup.
