IP HomeTalk A1061W White Doorbell

IP HomeTalk Door Chime

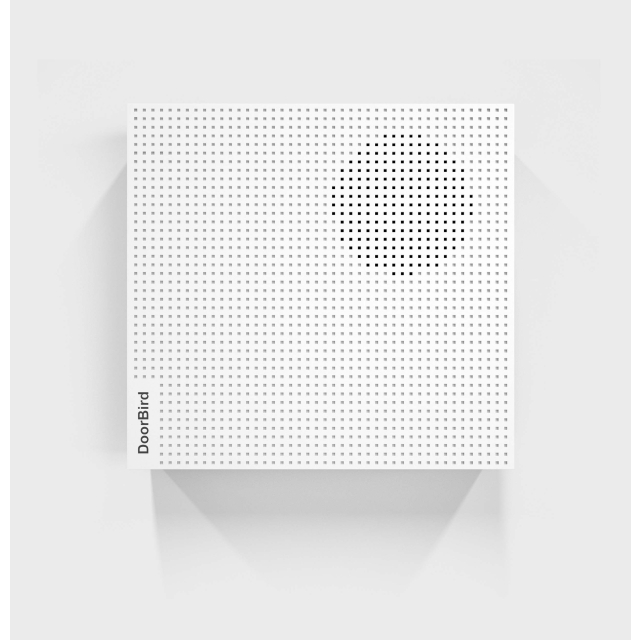

The IP HomeTalk Door Chime can be flexibly mounted on a wall or ceiling inside your home. You can connect the door chime to your network via Wi-Fi or a network cable. When using a network cable, the door chime can also be conveniently powered via Power-over-Ethernet (PoE).

The network-based door chime is configured using the DoorBird app. In addition to the volume, you can also set different ringtones. A DoorBird door station can be connected to any number of door chimes, and the door chime also supports any number of door stations. A separate ring profile can be stored in the door chime for each door station. The door chime can also be operated exclusively via the local network (LAN), for example, in the event of a brief internet outage. In addition, a floor call button can be connected to the door chime via a two-wire line, and an individual ring profile can also be stored for this. This way, residents immediately know whether someone is ringing at the front door or at the apartment door.

TECHNICAL DATA

Power Supply 15 V DC or Power over Ethernet (PoE 802.3af Mode-A)
Operating Conditions 0 to +55°C / 32°F to 131°F Relative humidity 10 % to 85 % (non-condensing)
Connectors
• 1x RJ45 socket (10/100 Base-T)
• 4x screw terminals
Loudspeaker 102 dB
Wi-Fi 2.4 GHz, 802.11 b/g/n, internal antenna
PoE IEEE 802.3 af/at, 10/100 T-Base
Housing Polycarbonate, UV-resistant

SYSTEM REQUIREMENTS
Mobile Device Latest iOS on iPhone/iPad, latest Android on Smartphone/Tablet
Internet High-speed landline broadband internet connection, DSL, cable or fiber, no Socks or proxy server
Network Ethernet network, with DHCP
Supported Door Stations Any DoorBird IP Video Door Station

Camera or Intercom Preparation

The intercom system should be installed by a qualified electrician. For planning, installation, and setup, please contact a licensed electrician.
