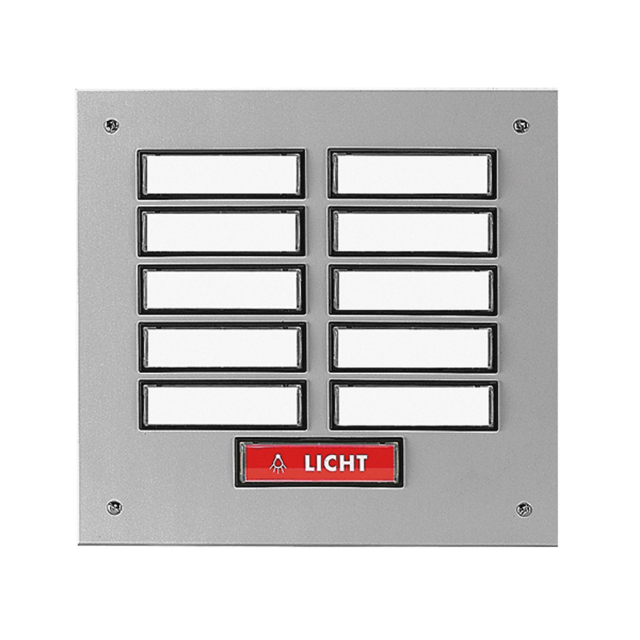

Apartment Building Entrance Panel ETA 856 with Doorbell for 10 Units

Two-Row Aluminum Floor Plate 856 EV1 – 10-Button Doorbell Panel with Additional Light Shield | High-Quality Recessed Solution for Multi-Dwelling Units

The ETA 856 EV1 floor plate is specifically designed for buildings with up to 10 residential units and also features a separate light shield, which can be used, for example, to display the house number, a logo, or a building name. The housing is made of silver anodized aluminum with a smooth surface and offers reliable protection against corrosion and weathering.

Note:
Recessed mounting box must be ordered separately, Item No. 55896

Technical Data:

Material: Aluminum, silver anodized
Dimensions (W x H x D): 192 x 202 x 54 mm
Shape: Rectangular
Mounting type: Recessed (required recessed box: UPK 856/866, Item No. 55896)
Doorbell buttons: 10 x flat buttons with writable nameplate
Light shield: 1 x separate field for individual labeling, ideal for house number or company logo
Lighting: Optional with festoon bulbs (not included – Item No. 51016 or 51037, 1 piece each required per button or light shield)
Switching capacity AC: Max. 24 V AC, 5 mA – 1.5 A / 24 VA
Switching capacity DC: Max. 24 V DC, 5 mA – 1.0 A / 12 W
Mounting holes: 16 mm from the outer edge in each case
Temperature range: -20 °C to +50 °C

Special Features:

For 10 residential units + 1 light shield – ideal for large apartment buildings or combined residential/commercial units
Robust and durable – anodized aluminum housing for maximum durability
Optional backlighting – for optimal visibility even in the dark
Clean design – enables clear and tidy labeling
Pre-drilled mounting distances – for easy and quick installation

Scope of Delivery:
Floor plate ETA 856 EV1 with 10 flat buttons and 1 light shield (without recessed box and festoon bulbs)

Accessories available separately:

Recessed box: UPK 856/866 (Item No. 55896)
Festoon bulbs for lighting: Item No. 51016 or 51037 (1 piece each per button or light shield)
Other components: Doorbell transformer, electronic chimes, Spare parts

Ideal for stylish entrances with functional added value and a uniform, modern appearance.
