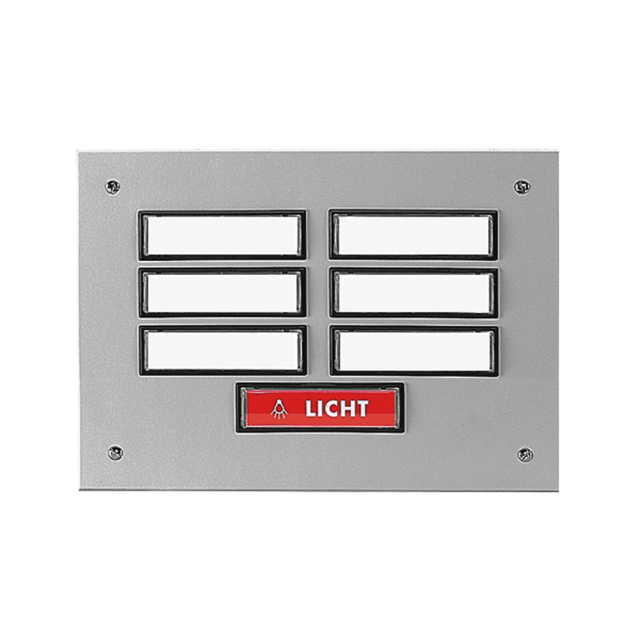

Apartment panel ETA 834 with doorbell for 6 residences.

Two-Row Aluminum Apartment Panel 834 EV1 – 6-Button Doorbell Plate with Integrated Light Panel | For Protected Flush-Mount Installation Outdoors

The apartment panel ETA 834 EV1 combines high-quality materials with functional design – ideal for use in apartment buildings with up to 6 units. Made of silver anodized aluminum, the surface is not only modern and elegant but also offers reliable protection against corrosion and the elements.

The panel features 6 flat pushbuttons with nameplates for residents, as well as an additional, separate light panel that can optionally be illuminated with a festoon bulb – ideal for displaying the house name, logo, or other information.

Note:
Flush-mount box must be ordered separately (Item No. 55894)

Technical Data:

Material: Aluminum, silver anodized
Dimensions (W x H): 5.67 x 7.95 inches (144 x 202 mm)
Shape: Rectangular
Mounting Type: Flush-mount (Flush-mount box required: UPK 834/844, Item No. 55894)
Doorbell Button: 6 x flat pushbuttons with writable nameplate
Light Panel: 1 x separate field for individual labeling, optionally backlit
Lighting: Optional with festoon bulb (not included – Item No. 51016 or 51037, 1 per field)
Switching Capacity AC: Max. 24 V AC, 5 mA – 1.5 A / 24 VA
Switching Capacity DC: Max. 24 V DC, 5 mA – 1.0 A / 12 W
Mounting Holes: 0.63 inches (16 mm) from the outer edge
Operating Temperature: -4 °F to +122 °F (-20 °C to +50 °C)

Special Features:

Weather Resistant: Silver anodized aluminum surface for durable outdoor use
Clean Layout: 6 doorbell buttons + 1 light panel for individual design
Optionally Illuminated: With festoon bulbs for optimal visibility in the dark
Clean Mounting: Standardized hole spacing for easy installation

Scope of Delivery:
Apartment panel ETA 834 EV1 with 6 flat pushbuttons and 1 light panel (without flush-mount box and festoon bulbs)

Accessories available separately:

Flush-mount box: UPK 834/844 (Item No. 55894)
Festoon bulbs for lighting: Item No. 51016 or 51037 (1 per button or light panel)
More Options: Chime systems, Doorbell transformer

Ideal for stylish entrances in apartment buildings – functional, robust, and visually appealing.
