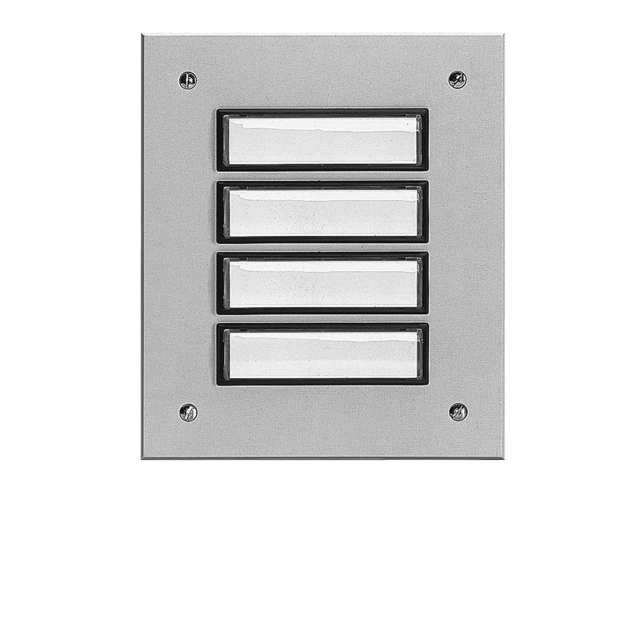

Floor plate ETA 804 with doorbell for 4 apartments

Aluminum Apartment Panel 804 EV1 – 4 Units | Flush-Mount Doorbell Plate with Optional Illumination

The Apartment Panel 804 EV1 is a high-quality solution for the entrance area of multi-family homes with up to four units. Made of silver anodized aluminum, it boasts a smooth, modern surface and offers excellent protection against corrosion and weather.

Each of the four push buttons features an integrated nameplate. For optimal visibility – even in darkness – a festoon bulb can optionally be integrated for illumination (not included, sold separately). One bulb is required per button.

Please Note:
Flush-mount box must be ordered separately (Part No. 55884)

Technical Data:

Material: Aluminum, silver anodized
Shape / Dimensions: Rectangular (144 x 121 mm)
Mounting Type: Flush-mount (flush-mount box required, Part No. 55884)
Doorbell Button: 4 x push buttons with nameplate
Illumination: Optional with festoon bulb (not included, Part No. 51016 / 51037 – 1 piece per button)
Switching Capacity AC: Max. 24 V AC, 5 mA – 1.5 A / 24 VA
Switching Capacity DC: Max. 24 V DC, 5 mA – 1.0 A / 12 W
Mounting Holes: 16 mm from the outer edge
Operating Temperature: -4 °F to +122 °F (-20 °C to +50 °C)
Number of Housing Units: 4

Highlights:

Timeless, smooth aluminum design – silver anodized
High weather resistance and corrosion protection
Four large push buttons with individually labelable nameplates
Optionally illuminated for best readability at night
Discreet and space-saving flush-mount installation
Ideal for small to medium-sized multi-family homes

Scope of Delivery:
Apartment Panel 804 EV1 with 4 push buttons and nameplate fields (without festoon bulb, without flush-mount box)

Accessories (sold separately):

Flush-Mount Box for flush-mount installation: Part No. 55884
Festoon Bulb for illuminating the nameplates: Part No. 51016 or 51037 (1 piece required per button)
Electronic Chimes and Doorbell Transformers for complete system integration

Order now and enhance entrance areas with functional design and reliable technology.
